Savings All Round

Original Process

Chemical additives, which are delivered and stored in 45 gallon drums, were loaded into a steam heated oven and left for up to 8 hours to achieve the correct temperature and viscosity prior to the difficult and often complex blending process.

The drums had to be manhandled into the oven which was an unpleasant task, since the environment was hot noisy and dirty.

The steam oven could accommodate 8 drums, but this was rarely possible since the drums often required heating to different temperatures which meant the oven was frequently under-utilised.

The slow turnround meant that a large number of drums were kept in circulation which required valuable storage space and additional handling.

SEEBOARD Technical Services

The production limitations were discussed during a visit by Seeboard's Industrial Sales Engineer, who suggested that induction drum heaters could solve the problem.

Following successful field trials arranged with the Industrial Energy Efficiency Centre, an initial order for 3 induction drum heaters was placed.

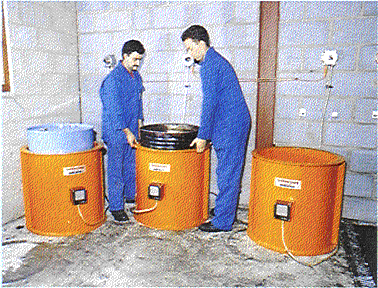

The heaters consist of a large induction coil encased in a glass reinforced polyester cylinder, which is  placed over the drum. An AC supply induces an alternating current in the drum itself, generating heat uniformly through the drum surface.

Induction Drum Heaters

The induction drum heaters have enabled blending throughput to increase from 5 to 20 drums per day - and increase of 300%. Annual energy costs have reduced six fold, in spite of this increase in production.

The heaters take as little as 2 hours to achieve consistent, even melts with no product degradation. The much greater control of temperature and viscosity produces a higher quality product.

Project payback was 8 months, achieved by the precision power of electroheat placing energy where it's wanted, when it's wanted.

Benefits

	Improved working environment
	Increased production capacity
	Reduced energy costs
	Reduced drum handling
	Improved product quality
	Improved production control
	Payback 8 months on capital cost.
